Dwage May 17, 2025

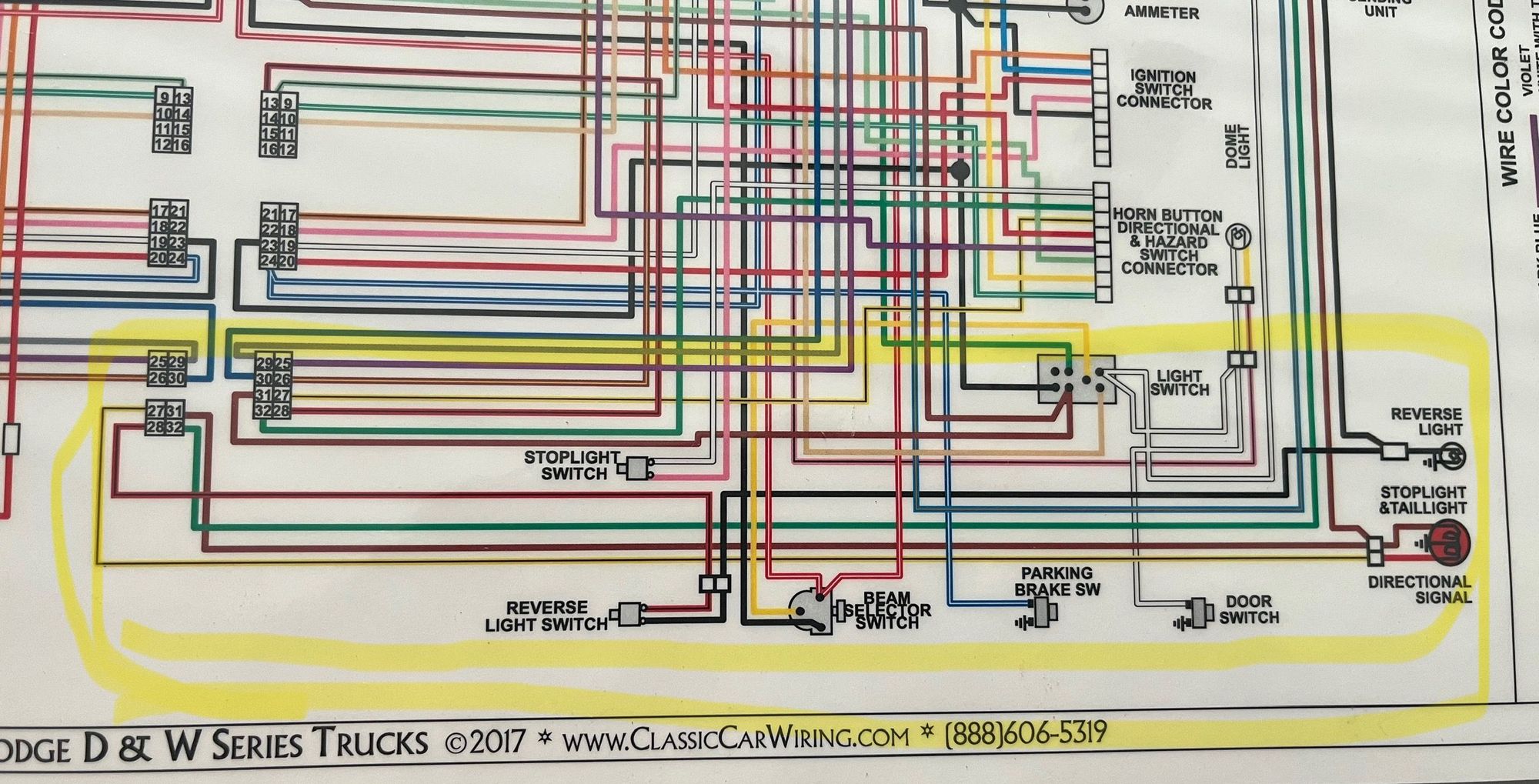

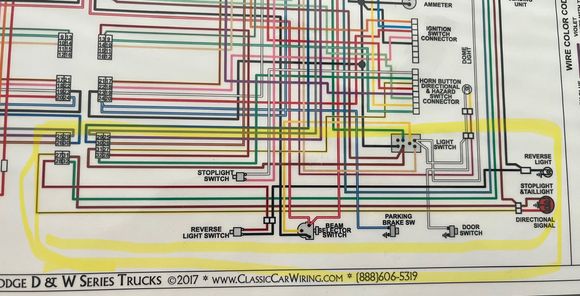

Judging from this diagram I got for my series of truck, I believe that wire connector is shown in the diagram as the two little white boxes leading to the reverse light switch. With that being said, and if my diagram is accurate to my truck, I'm not sure why a green and white wire can be found down there on that frame rail.
