Rewire Schumacher battery charger switch

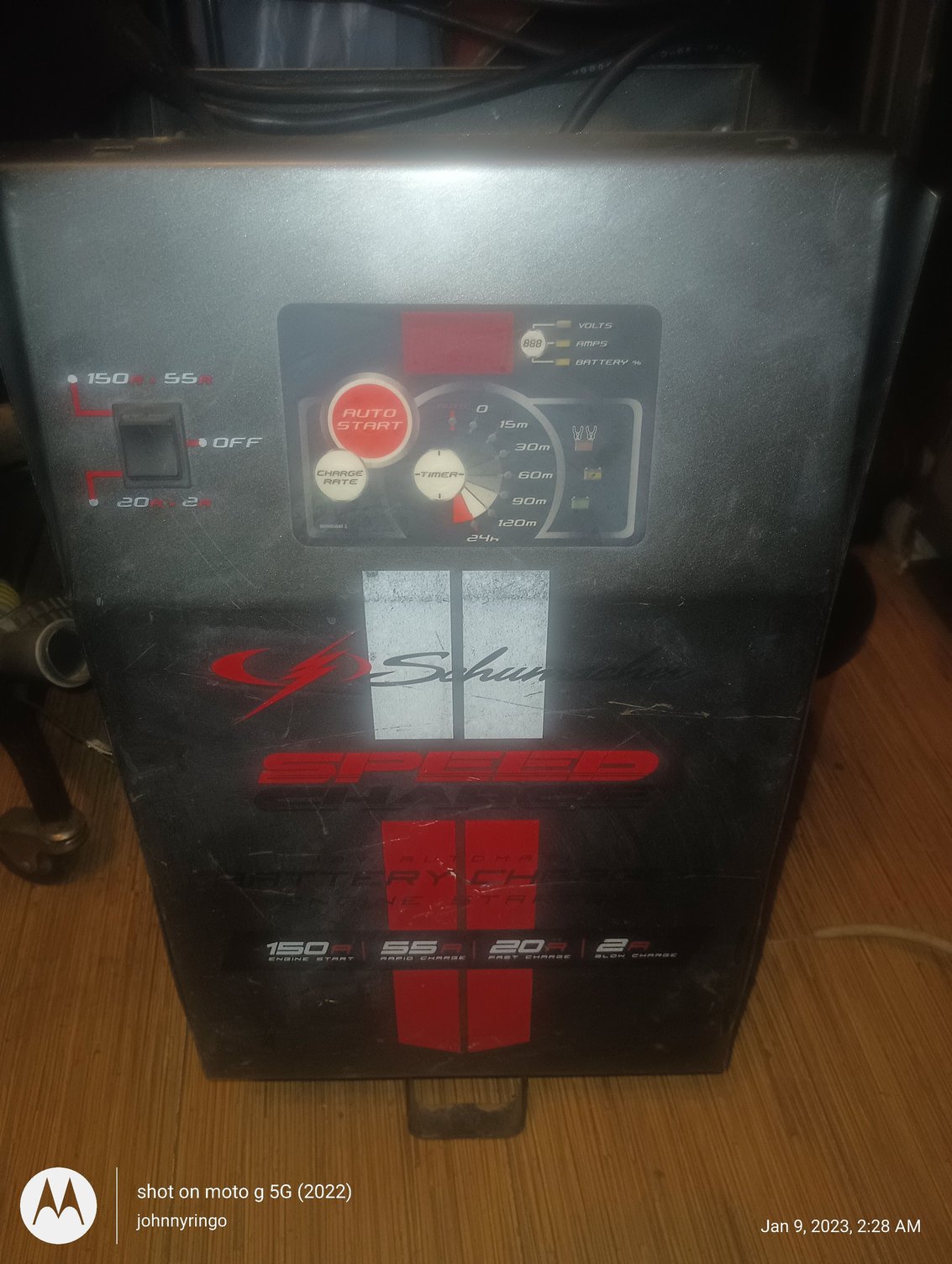

Hi I hope some one can help me i have tried all manuals an pintresst to no avail. I need to use my charger I disconnected the wires goin to on off switch also has up for 150/55a an middle would be off an down is 20/2a, , I have 2 orange wires one coming from the rectifier an one coming from the digital display an then black white red the switch is a 6 pin 3 on each side where do i connect them , oh i disconnected because i was gona blow out the dust an found it easier to get to the bottom an i should have took photos i usually do but my memory gettin old sorry but any help wouldd greatly be apreciated an thanks for.lettin me in here thanks an hello to every one
#3
New Member
Thread Starter
Join Date: Jan 2023
Location: Amarillo tx
Posts: 5
Likes: 0
Received 0 Likes
on
0 Posts
Its in off position but i tried to plug it up to see if i miraculously put them in the right place but it didnt even turn on
Could u tel me which is positive cable an where it should be comin from please. I tryin to figure out also how to use this pag to reply an show pictures
Could u tel me which is positive cable an where it should be comin from please. I tryin to figure out also how to use this pag to reply an show pictures
#4
New Member
Thread Starter
Join Date: Jan 2023
Location: Amarillo tx
Posts: 5
Likes: 0
Received 0 Likes
on
0 Posts
I sorry for such a late reply i been so busy i hadn t had time to look in here I do apoligize for that i have the older with regular meter conectd wrong also it just isn the same its charge in but in wrong modes i even found another one i u
I found this one in my shed i dont even want to plug it up
I found this one in my shed i dont even want to plug it up
#5
New Member
Thread Starter
Join Date: Jan 2023
Location: Amarillo tx
Posts: 5
Likes: 0
Received 0 Likes
on
0 Posts
An i am sorry i didnt read this right I took model for mode what a brain fart that was please be patient wit me i am new to all of this but this was my last resort or scrap them
#6
Mopar Lover
I'm Guessing the model is an SE-1555A..... I dont see the correct Wiring Diagram....
My suggestion would be to call Schumacher and see if they can E-Mail you a Diagram of how the wiring gose....
Good Luck...
My suggestion would be to call Schumacher and see if they can E-Mail you a Diagram of how the wiring gose....
Good Luck...
#7
New Member
Thread Starter
Join Date: Jan 2023
Location: Amarillo tx
Posts: 5
Likes: 0
Received 0 Likes
on
0 Posts
Thanks I tried thAt also, they havent replied back also , you know, I wonder if i could get a diagram of a regulAr 150 or any battery charger , with a speed starter an has a 3 pozition zwitch if I could put mine in the same position, i would think instead of digital it would be volt meter but would go in the same pin i would think it would be the same way when I took those off i really thought it would be easy to find a diagram but its been the worst mistake i have done I see alot of the same automatically speed charger engine starter they just have owners manual an shows u how to put it together but not the wireing part if i could find another person that owned one I would pAy him 10 $ for a photo shot of the in side I cant be the only guy that has one i am dumbfounded, But I do appreciate your time an effort tryin to help me thanks for your help
#8
Hi, did you manage to solve the problem?
Last edited by draycen; 05-14-2023 at 09:54 AM.
