Rite now im just gonna use the points as the trigger but im sure this can be develop further to use magnetic pickup etc. later.

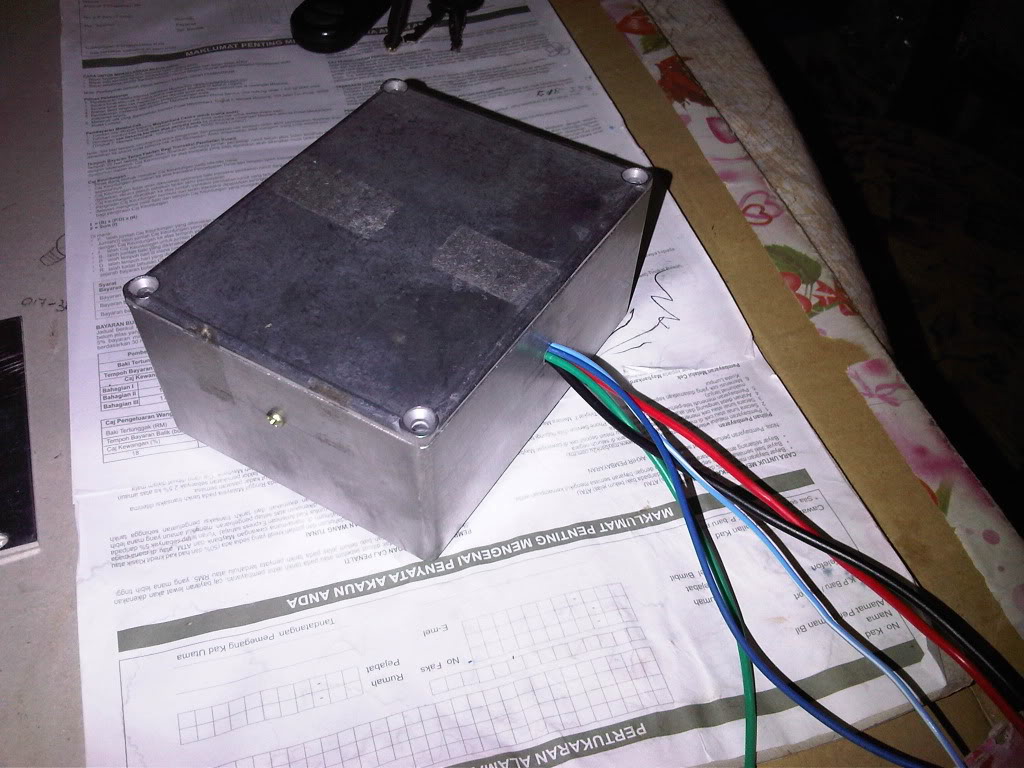

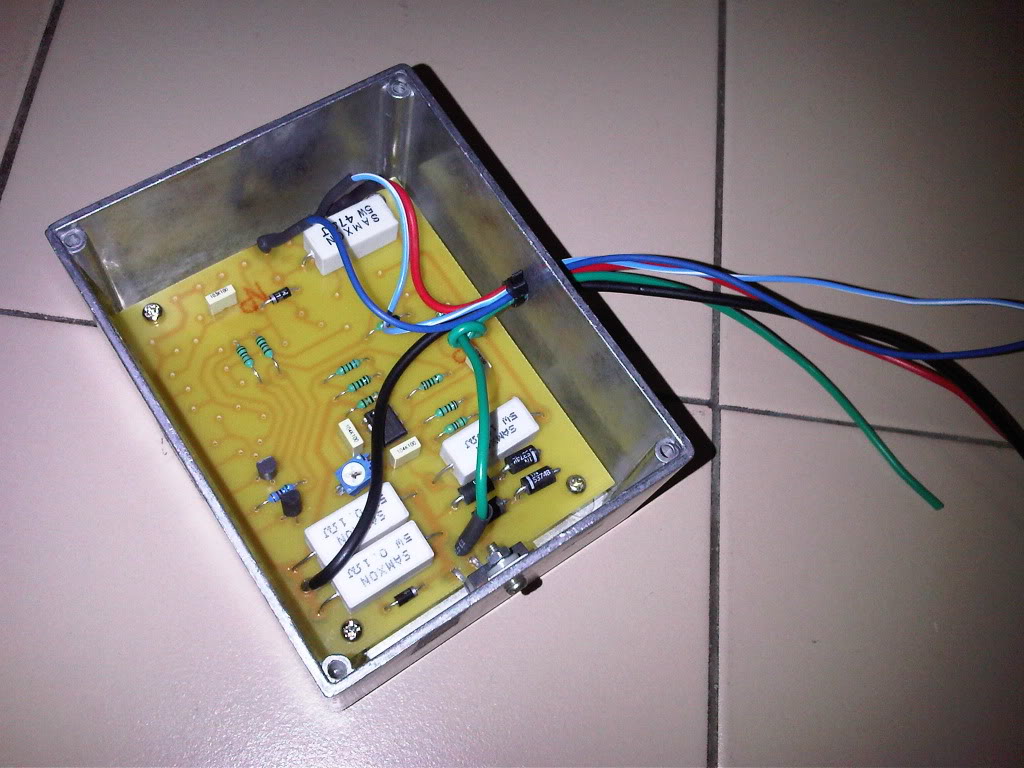

Here are some pictures, before installation:





This will eventually be painted and attached to the inner fender.

What do you think?

Syed



So you designed the circuit and soldered the components on a circuit board?



No it was sold in Kit form. I just had to wire/solder everything together.

Bought it years ago in Perth, Australia for like A$80 but never got the chance to build/install it. I think its at least 5 yrs old. But hopefully all works well. Will keep you updated once fitted.

Syed



Looks pretty neat. I'm interested to see if the points really work as a trigger, was the kit designed with this in mind? Points are normally closed contacts and magnetic triggers are normally open. Very interested.



If all goes well, I should be installing this baby on Sunday. Will keep you guys posted

Syed



As promised...

Here are a couple of pictures, painted, and installed on RH inner fender.





Runs like a charm, very smooth and I can feel theres more mid-range torque. Im very happy with the results.

Syed



How about a running video?



Will do, once i get some time and a decent camera
